1*Port version suitable for micro switch type joystick

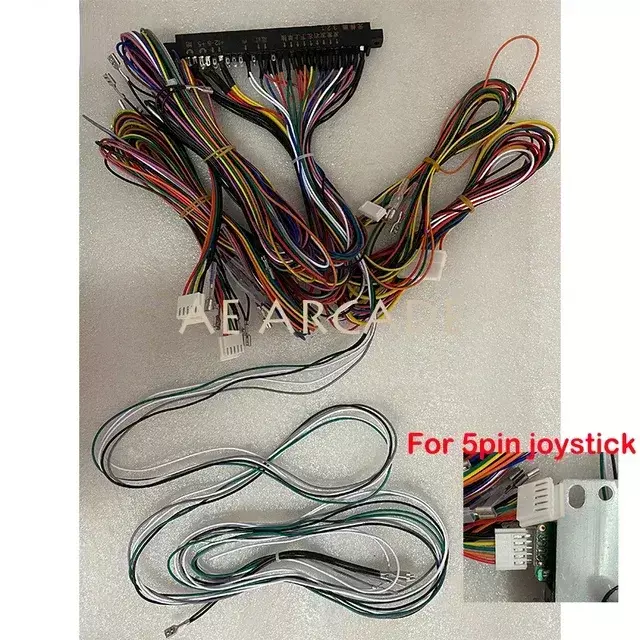

2*The 5pin style is suitable for the 5pin joystick
(Please select the appropriate operating rod wire)

• Edge connector includes -5Volts (as well as all other voltages)

•


• Button 6 is also connected into the harness

•


• Both ground connections are wired into the harness (pins 1+2+28)

•


• All pins on edge connector are protected by heat shrink

•


• All end connectors are designed for quick connection (no soldering) and protected by plastic sleeves

•


• Easy to follow plugs and connections for your monitor, speakers, power supply, and coin meter.

•


• Used for all game boards that uses the standard Jamma wiring standard.

Product Information:

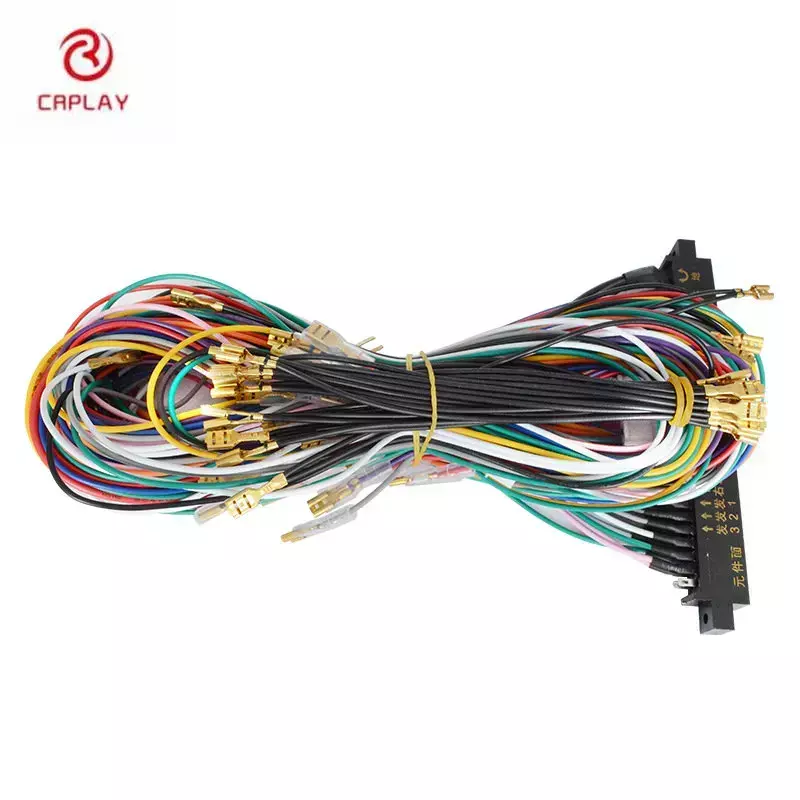

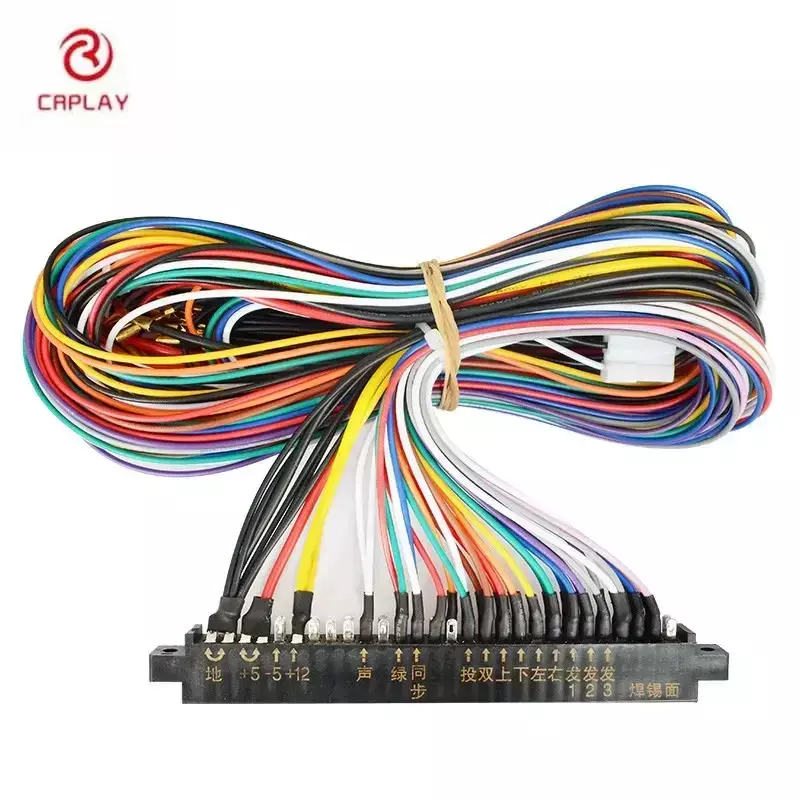

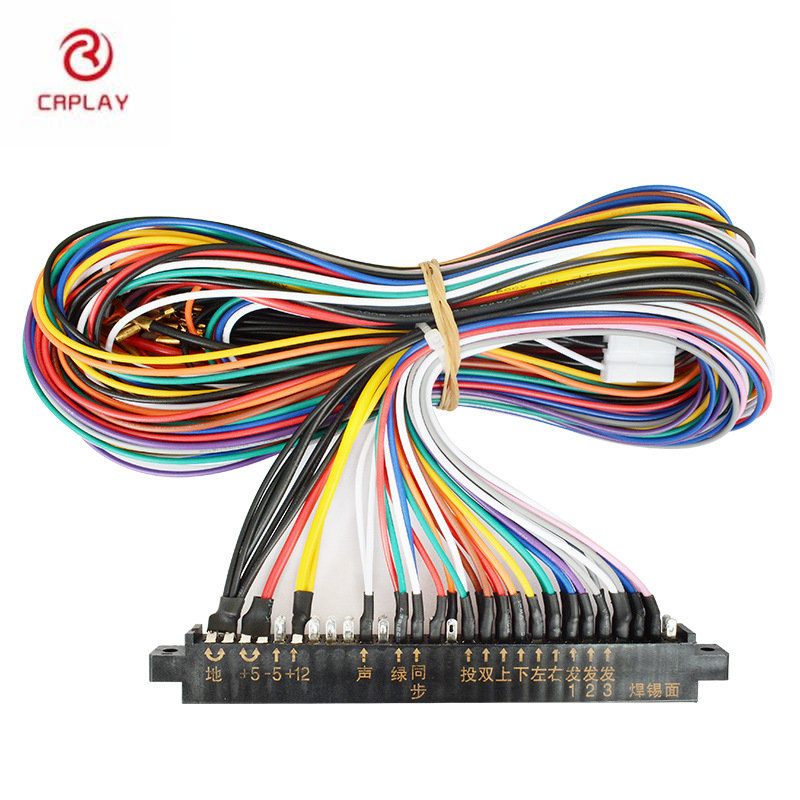

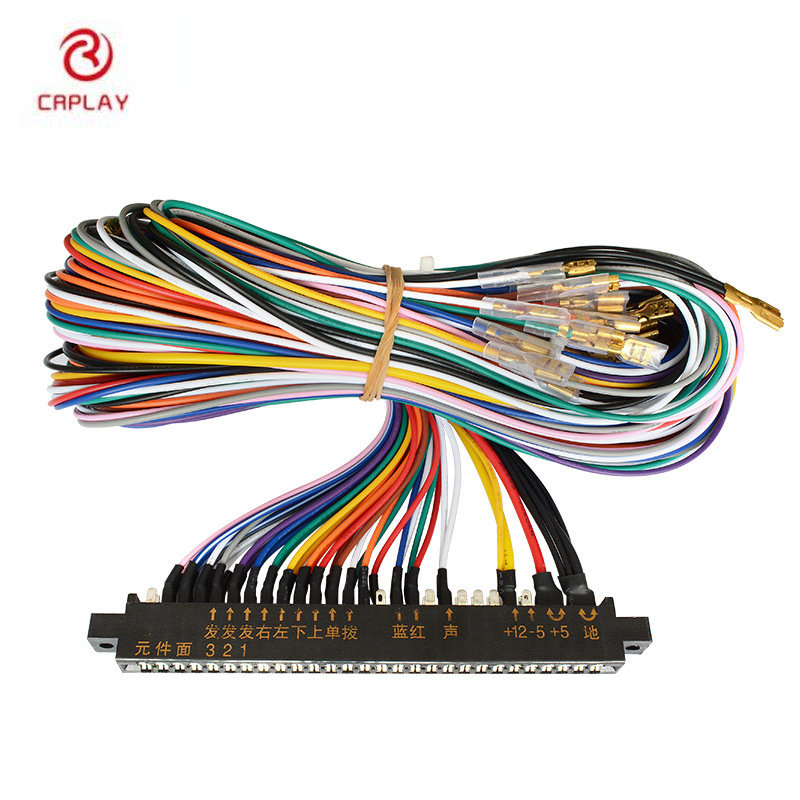

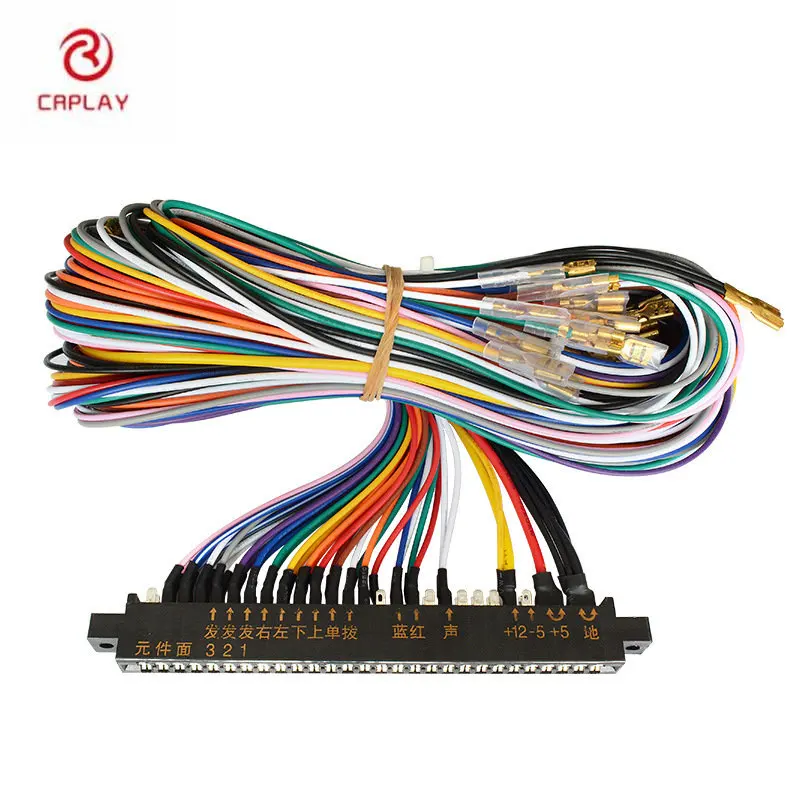

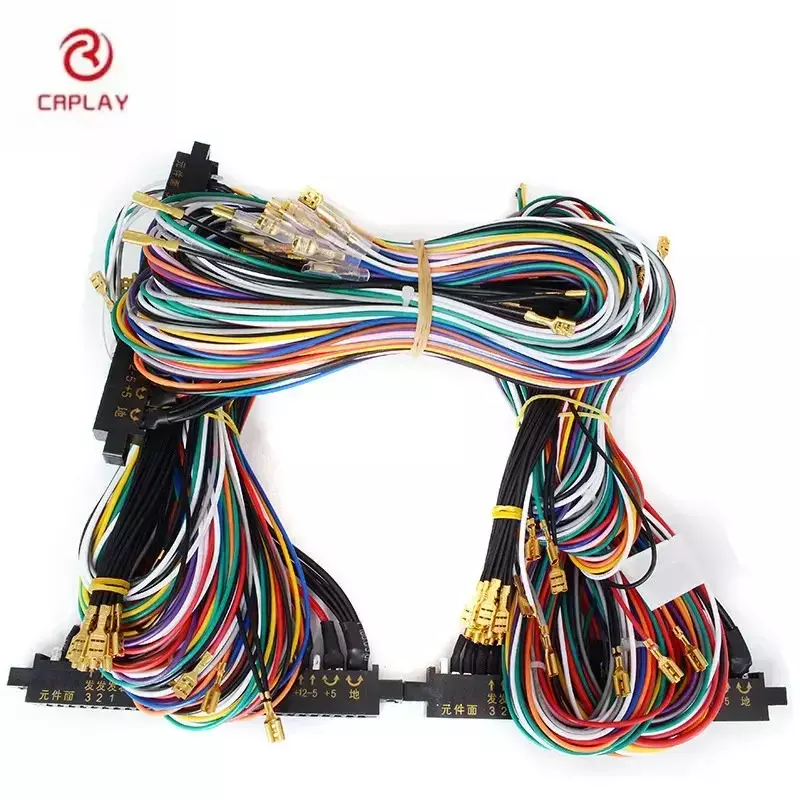

• New Premium Standard 28/56 pin Jamma connector used on many arcade boards to simplify conversion of game cabinets with color coded connections for 2 players, power, coin doors, test, service, video, and sound. 28 pins on each side of the Jamma harness. It comes with edge connector, push button lugs, power leads, grounds, and RGB monitor output connection for hookup to older tube monitors.

• All leads have .187" (4.8mm) quick disconnects for easy connecting of buttons and joysticks. Power lines have terminal forks for easy connection(+5VDC, +12VDC, GND) to game power supply, full grounding loop for all joysticks and buttons on your control panel.

• Please note :2.8mm Small port very suitable Sanwa push button ; 4.8mm Big port very suitable American style push button
