Description:
Support Carplay & Android Auto
Product model: 7011
Button light: seven colors
Screen size: 7 inches
Image format: JPG Support U disk Support Bluetooth Support ALS
Steering wheel control: Support Screen resolution: 800*480
Reversing display: supported (optional camera required)
Time display: 24-hour digital clock
Input language: English, Chinese, French, Portuguese, Spanish and other languages

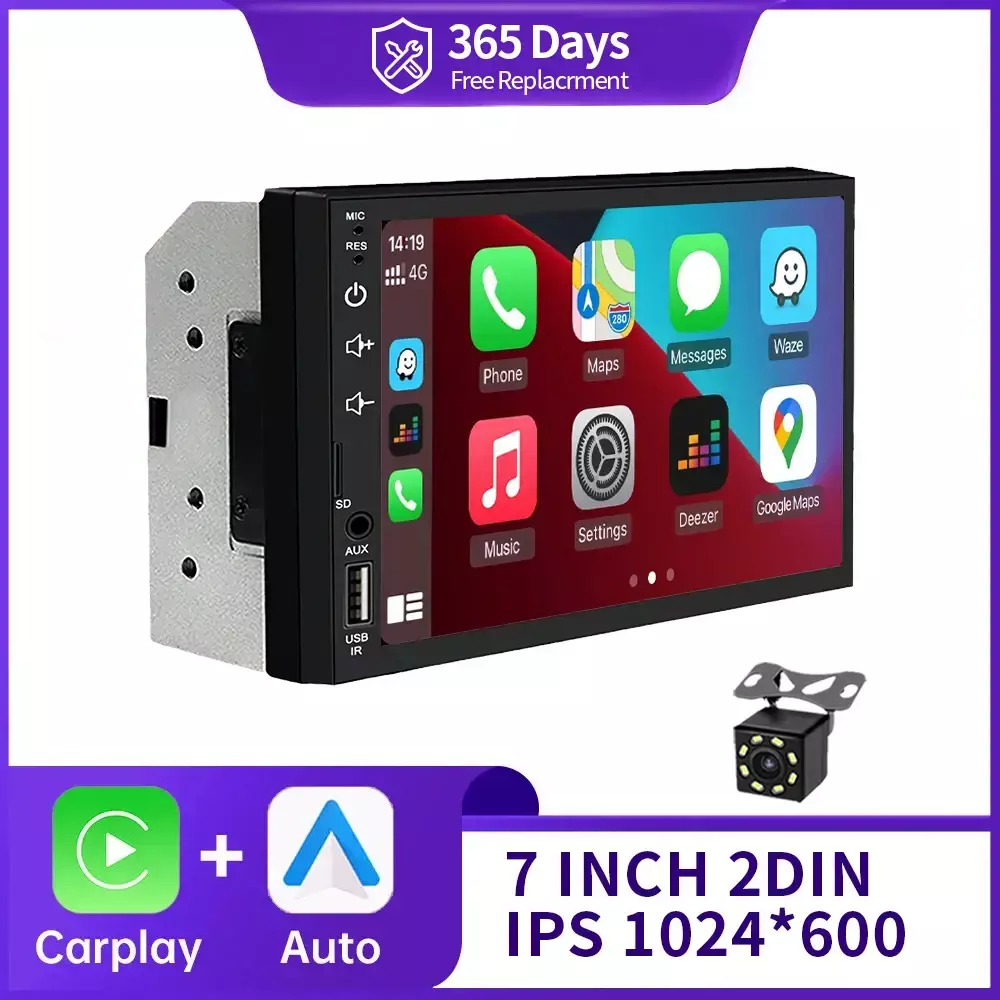

Car MP5 CarPlay
Carplay & Android Auto
Mirrorlink
7 color button lighting
CAN BE EXTERNAL CAMERA

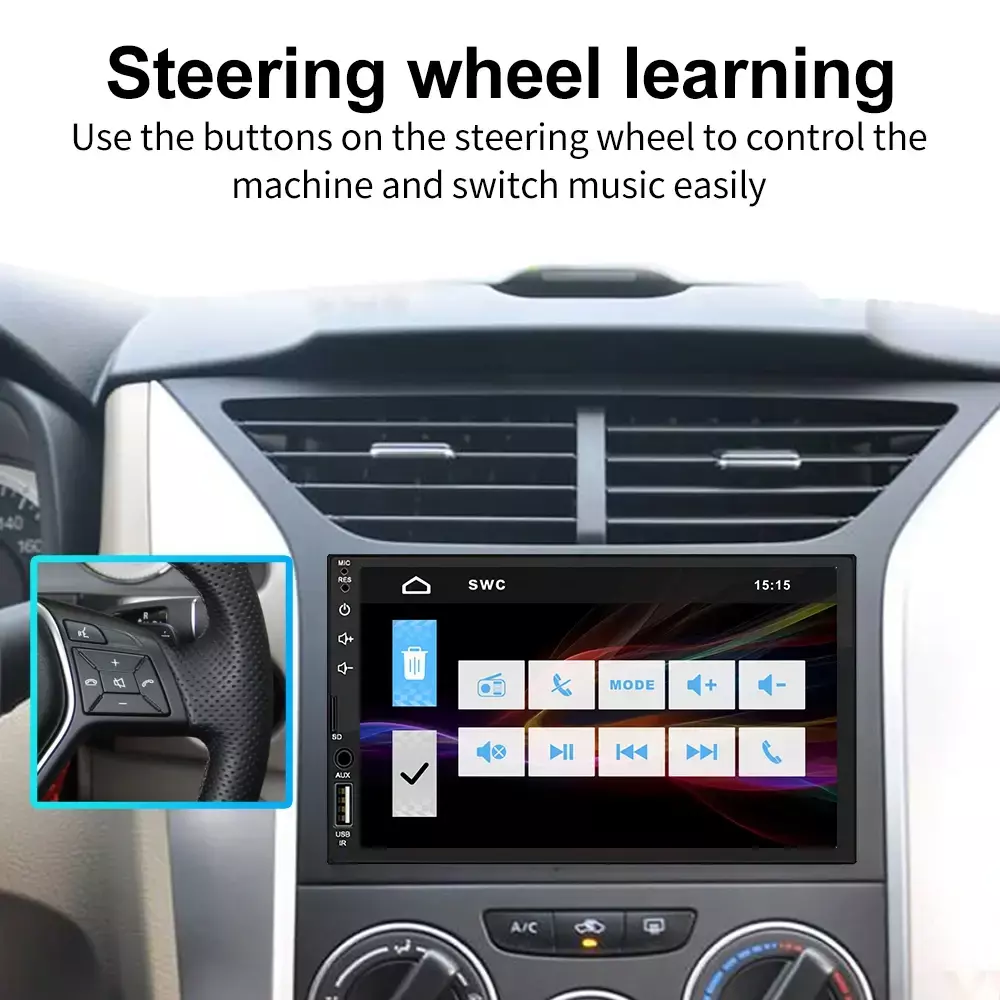

Steering wheel learning
FM radio
BT connection
Panel introduction
Q&A
Q: Do not turn on, the screen does working well?
A: Please check whether the power cable of the
machine is connected incorrectly or incorrectly. The normal wiring method is as
follows: the yellow wire (B+) is connected to the 12V cable that is always
active, and the red wire (ACC) is connected to the key cable of the original
car. The method of judging the key cable is as follows: the key cable is 12V
when the car is started and 0V when it is closed; Black connected with the
negative pole; Check for blown fuses at electrical outlets in cars and
machines.
Q: No sound from the horn?
A: Please check whether the horn wire of the
machine is connected correctly. Please connect the horn of the original car
strictly in accordance with the interface definition of the manual or the body
label. Otherwise, the power amplifier chip of the machine may be damaged.
Q: Can't remember the last radio station and music
you set?
A: Please check whether the red and yellow wires
are reversed. Make sure that the yellow wire (B+) is always connected to the
original car cable with 12V voltage, and the red wire (ACC) is connected to the
original car key cable. The key cable is 12V when the car is started and 0V
when it is closed.
Q: Can't read or play , USB music and videos
A: Please use 8G or 16G storage card or USB flash
drive. Some large-capacity storage devices may not support it. Format the
storage device to ensure that the storage device's file system is the default
value; Partially encoded video or music may not be recognized by the machine,
please use common format media files.
Q: The Bluetooth connection fails, or some
functions are abnormal after connection?
A: Please use your mobile phone to search for
Bluetooth of the machine, the name is "CAR BT" or "CAR
KIT"; Delete the devices that have been paired with but are not connected
to the phone. Some Bluetooth devices that have been paired with each other may
cause the phone's Bluetooth cannot be paired with other devices or its function
is abnormal.
